Arcade Machine Madness - Part 3

Windows Dressing

It's entirely possible to run MAME without any kind of additional user interface.  It won't be pretty, and you'll need to use your mouse and keyboard to select your games, but it will work.  When envisioning how I wanted my arcade machine to function, I wanted conceal the fact that it's running on a PC (though obviously it is).  That meant making things like game selection and any commonly used MAME functions accessible through the control panel.

Fortunately there are many user customizable user interfaces that work perfectly well in conjunction with MAME.  After some research, I went with MaLa because it is extremely flexible and I would be able to expand should I want to run additional emulators on my machine.  In additional to simple game selection, MaLa can display associated material for each game however you like.  And there are tons of pre-made layouts should you want to get up and running quickly.  I elected to design my own using my somewhat limited Photoshop skills.   I knew I wanted to do some kind of spacey grid thing and that I wanted to display a screenshot of each game as well as a graphic of the controls.   After a couple of weeks of on and off work, I ended up with this:

It's functional and I'm pretty happy with it.   I decided to carry the grid theme to the control panel as well, so I whipped up a simple design which looked like this:

I figured I could print this out at Kinko's, glue it down on my panel, and then apply several coats of polycrylic. That didn't work as the printed out material bubbled and wrinkled almost immediately.  So an intense sanding job later, I was back to square one.   The answer came from Eric's work colleague who was kind enough to rework my design and print it out on a vinyl cutter.  I lost the color I was looking for, but gained a really awesome looking control panel.

For the sides of the machine, I decided to stencil some spacey designs in three colors.  So I grabbed three cans of spray paint and got to work.  I had never done this before and I think it turned out ok.

Quite pleased with the little rocket ship.
There's that grid again.

All that was left was the marquee, which is a pretty important piece.   I knew I wanted to pay homage to the arcades of yesteryear, so I named my machine after the best arcade in the greater Burlington, Vermont area.

Upton's was a fixture on lower Church Street for years. Starting out as a sandwich shop and ice cream parlor in the 40s, Upton's switched to video games in the 70s.   During the arcade heyday of the late 70s and and early 80's, Upton's was hands down the best place to play video games.  Friendly staff, well serviced machines, and new titles shipped in regularly.  As home consoles and arcades fell out of favor by the mid 80s, Upton's fell on hard times.  They move a block down the road to a cheaper location, but the writing was on the wall.   Things got grungy.  Drug dealers and riff raff settled in.  It just wasn't the place that it used to be.   But at least now I've got a little virtual piece of Upton's in my living room.

NEXT POST:  Finishing touches.

Thursday, January 10, 2013

Arcade Machine Madness - Part 2

In Control

While all that cabinet prepping was going on I had to give to serious thought to how I wanted to control panel to work.  There are so many games that require special controls, I knew I wouldn't be able to building something that would cater to all the games I would like to have.  So I went with a fairly standard setup that covers most major game styles.

The Joystick and button configuration would allow for most two-player games (included standard 6-button fighting games) as well as twin stick games like Robotron and Crazy Climber.  The trackball would cover Centipede, Missile Command, and Marble Madness.   The dial would play games like Tempest and any Breakout clones.   I could have added additional dials and trackballs but the cost would go way up and I'd have to enlarge the panel past the width of the cabinet.

Driving games were pretty much a no-go as I didn't want to add a wheel.  It's technically feasible to play with the joystick or dial, but it just doesn't feel right, so I ditched it.  Other games like Tron wouldn't work that well either.  A bit of a heart-breaker as Tron is a classic, but what can you do.  And no light gun games.  Again, it's too bad but I supposed I could build another cabinet to cater to those kinds of games if I really wanted to.

I ordered all of my controller parts from Ultimarc over in the UK.  They carry lots of quality parts and the customer service has been excellent.  Joystick choices are numerous and quite frankly a bit confusing.  After some research, I settled on the Mag-Stik Plus.  It's an ingenious little controller that uses a magnet to self-center instead of springs (which are prone to wear and tear).  It also let's you switch from 4-way to 8-way directionals without having to access the underside of the panel.  This was really important to me as certain very popular games (Donkey Kong and Pac-Man) don't function well with 8-way joysticks.

As I went along ordering buttons, ball, dials, and sticks I realized that I needed to start thinking about the aesthetic look of my machine.  I knew I wanted a slightly retro arcade feel, and I was getting it into my head that I really wanted glowy blue grid lines to be a dominant feature of the artwork.   With that in mind, went with red, blue and white for the colors of the controls.  Once they arrived, I built a mock-up panel with some cheap wood to see how the controls would feel and to get some practice wiring the whole thing together.
Although it's mostly idiot-proof, I was still worried that I might screw things up.  Both the trackball and the dial plug into the computer via USB, but the sticks and buttons need to be wired to a control interface which then plugs into a free USB port.  Again, the customer service at Ultimarc is impeccable.  Instructions on how to wire this thing up and program the controls are clear and easy to follow.So I took an evening and got half the board wired.

Nasty little piece of scrap wood
I think the green light means it's working

I was pretty happy with the feel of it, and much to my surprise, it worked perfectly.  After some quick modification to the button and joystick placement, I cut another board and got to work wiring up everything.

All switches and buttons need to be connected via a ground wire.

The whole thing wired up

The top of the panel.  Not too shabby.  Needs art obviously.

NEXT POST: With the panel well underway, I now needed to dedicate some serious time to the software interface and the graphic design.

Monday, January 7, 2013

Arcade Machine Madness - Part 1

In the Beginning...

I've always wanted to have my very own arcade machine, but I don't think I could ever pick out just one game to have.  So I'd likely end up owning several machine.  The logistics of keeping them maintained seemed too much to handle.  And where the hell would I put them all?  I mean, don't want to end up like this guy.  Well, actually I DO.   But let's face it.  Unless I experience a windfall of cash, that just ain't in the cards.

But what I could do is build my very own MAME cabinet.  MAME of course stands for Multi Arcade Machine Emulator and it's just that.  It's software that runs on a standard computer that will run nearly any arcade game you can think of.   Stick the PC in a video game cabinet, toss on some fancy pants controls and boom, you've got an arcade in your living room.   After years of talking about it, I finally did it.  Hooray for me!

This isn't a "How To" post.  There are plenty of other people who have done an excellent job explaining what it takes to build one of these things.  I will say that it wasn't as hard as I thought and even though I made a ton of mistakes, I'm really happy with the results.

This is Eric

Credit must go to my friend Eric who stumbled upon some guy looking to unload a bunch of old arcade machines in his garage. Most of the stuff was junk, but there were three cabs in pretty good condition.  We got them for $15 each.

Mine was an old Rally Bike machine.  Hardly a classic.  We hauled them back to my cousin's barn.  In exchange for storing these monstrosities, we'd build a MAME machine for him as well.  We spent a good deal of time gutting the machines, cleaning them up, sanding them down, and basically getting them ready for all new parts and a fresh coat of paint.

Before the gutting

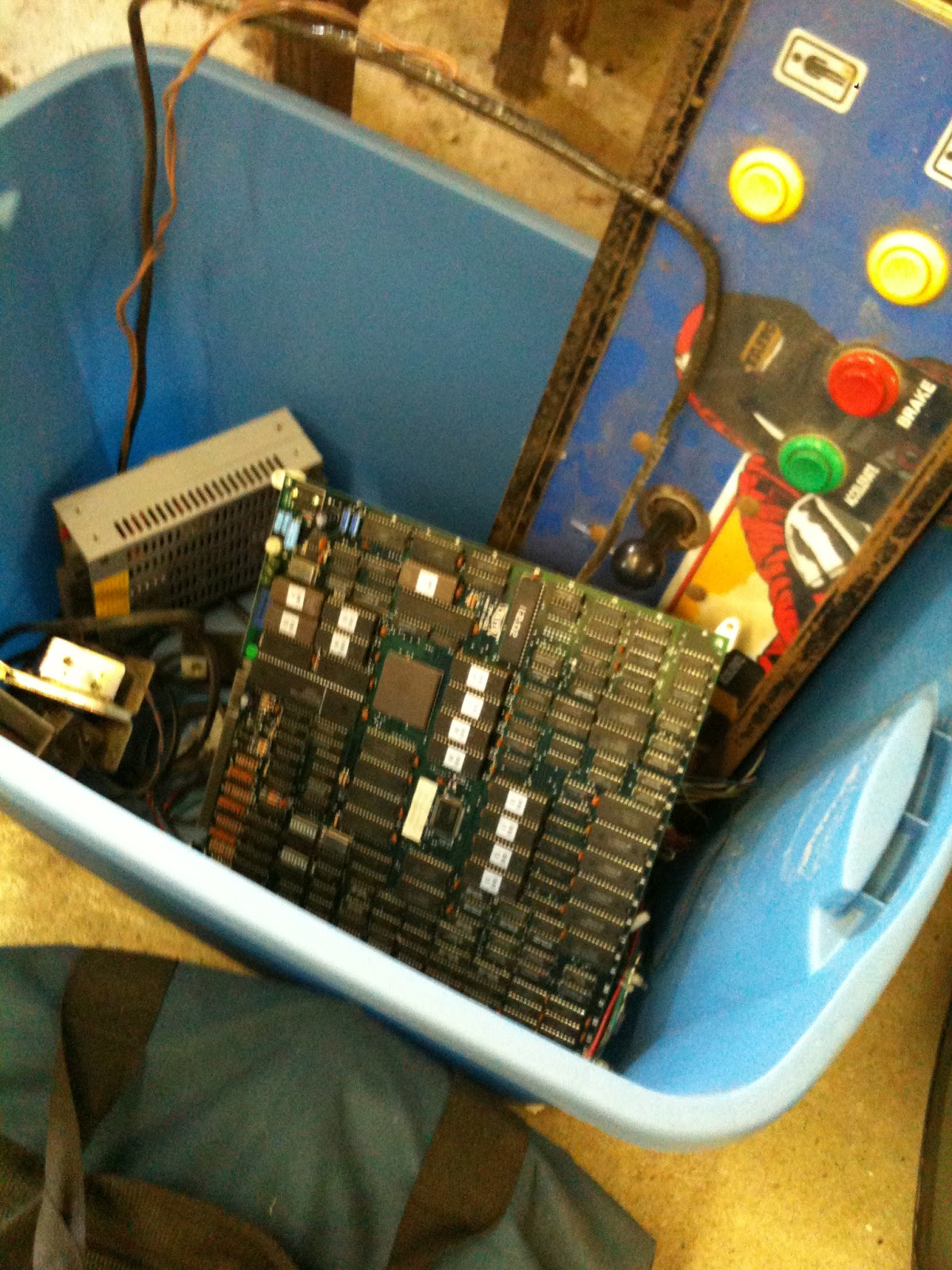

We sold most of this on eBay
